PRE-ENGINEERED SYSTEMS

For yachts, pleasure craft, and non-SOLAS vessels up to 24 meters.

Marine Control Panel
Universal 24Vdc

Dimensions:
H=82mm W=83mm D=25mm

Ideal for yachts, pleasure craft, and non-SOLAS vessels up to 24 meters in length, aerosol fire suppression systems provide a highly effective, compact, and cost-efficient solution for marine fire protection.

They are easily installed in engine rooms or other areas normally not occupied by people, within the vessel.

They have a capacity of extinguishing fires rather quickly.

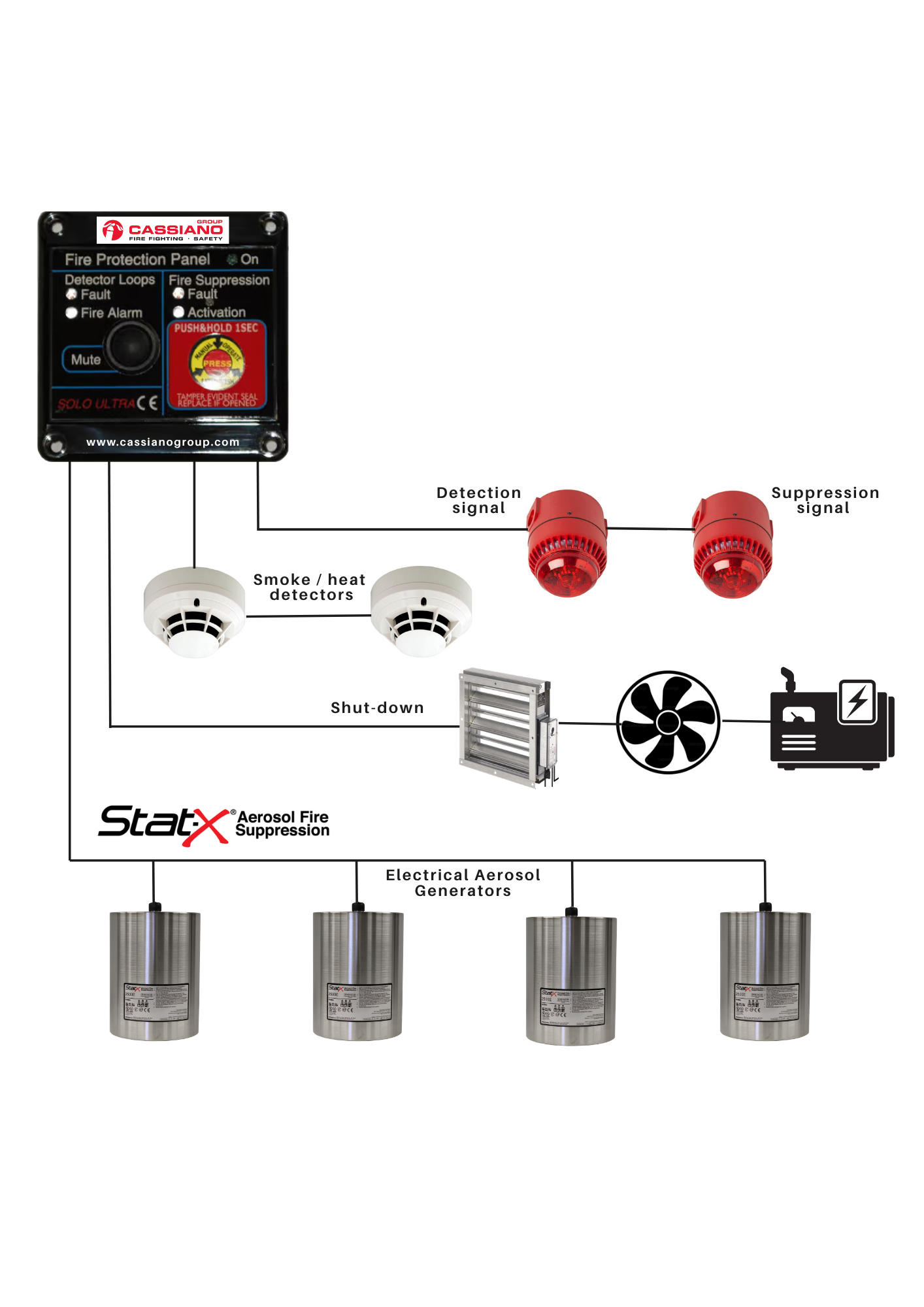

These systems are available in either manual or automatic versions, with or without smoke/heat detectors.

They do not require any pipework and can be installed on both walls and ceilings with its specific brackets that are supplied with the system.

  • Chooseable automatic stop/shut-off system for the engine, genset, ventilation and dampers.
  • Chooseable delay before discharge from 0 to 30 seconds.



ENGINEERED SYSTEMS

For commercial yachts and vessels over 24 meters.

FS12 Marine Fire Control Panel
Compact MED-approved control panel for aerosol fire suppression systems.
Dimensions: 199 × 179 × 110 mm (H × W × D).
Designed in accordance with IMO MSC.1/Circ.1270 requirements and suitable for SOLAS and commercial marine applications.

Ideal for commercial yachts and SOLAS-class ships over 24 meters, aerosol fire suppression systems provide a highly effective, compact, and cost-efficient solution for marine fire protection.

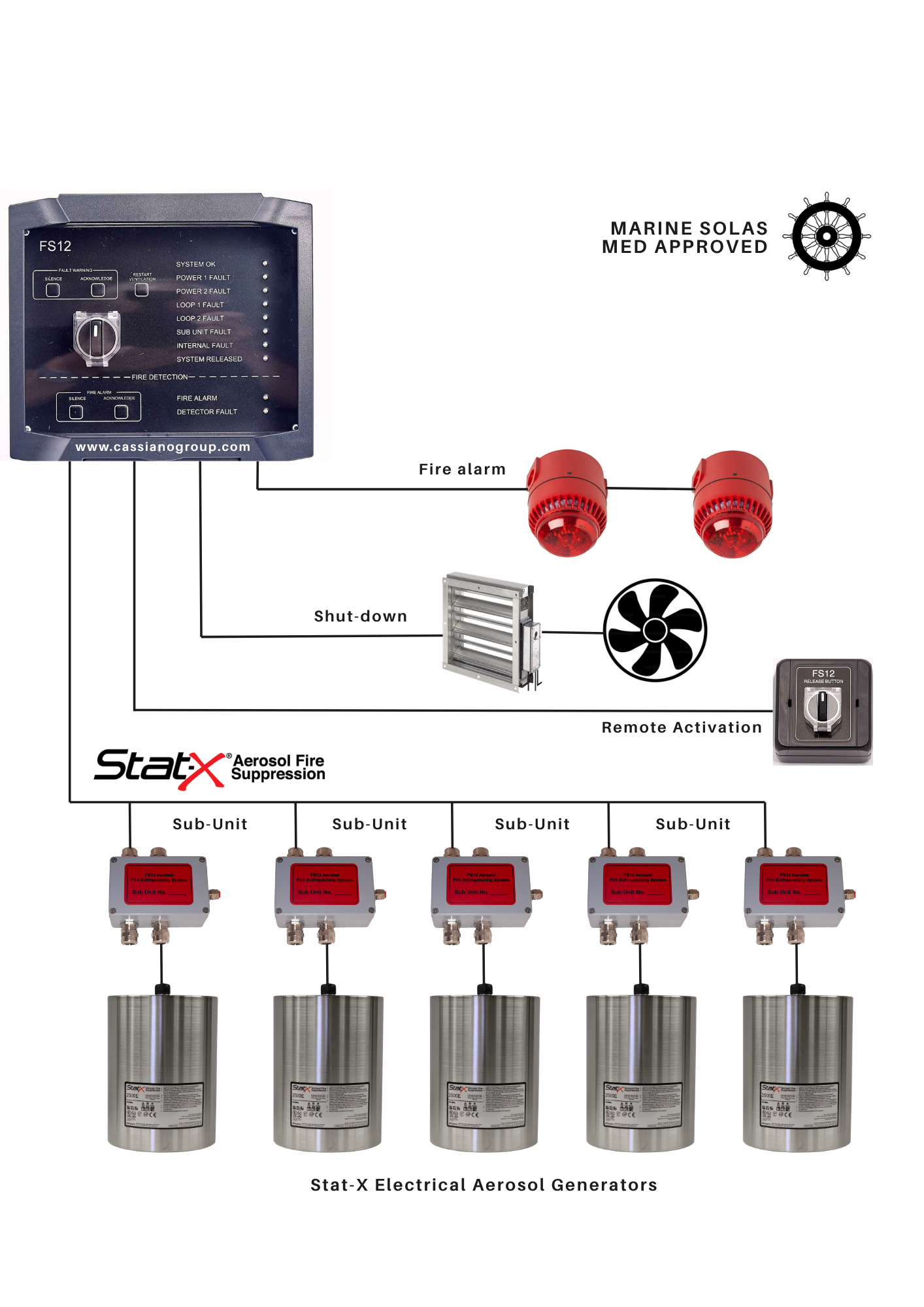

The system combines advanced fire detection, automatic shutdown functions, and electrically activated aerosol generators to provide rapid fire suppression while minimizing installation complexity. Upon activation, the control panel can automatically stop engines, generators, ventilation fans, and close dampers before releasing the extinguishing agent into the protected space.

Approved in accordance with MED and SOLAS requirements, the system offers a cost-effective alternative to traditional gas extinguishing systems, eliminating the need for cylinders, extensive pipework, and dedicated storage rooms. Available in both automatic and manual release configurations, it ensures effective fire protection while maintaining full compliance with international maritime regulations.

  • Chooseable automatic stop/shut-off system for the engine, genset, ventilation and dampers.
  • Chooseable delay before discharge from 0 to 30 seconds.
